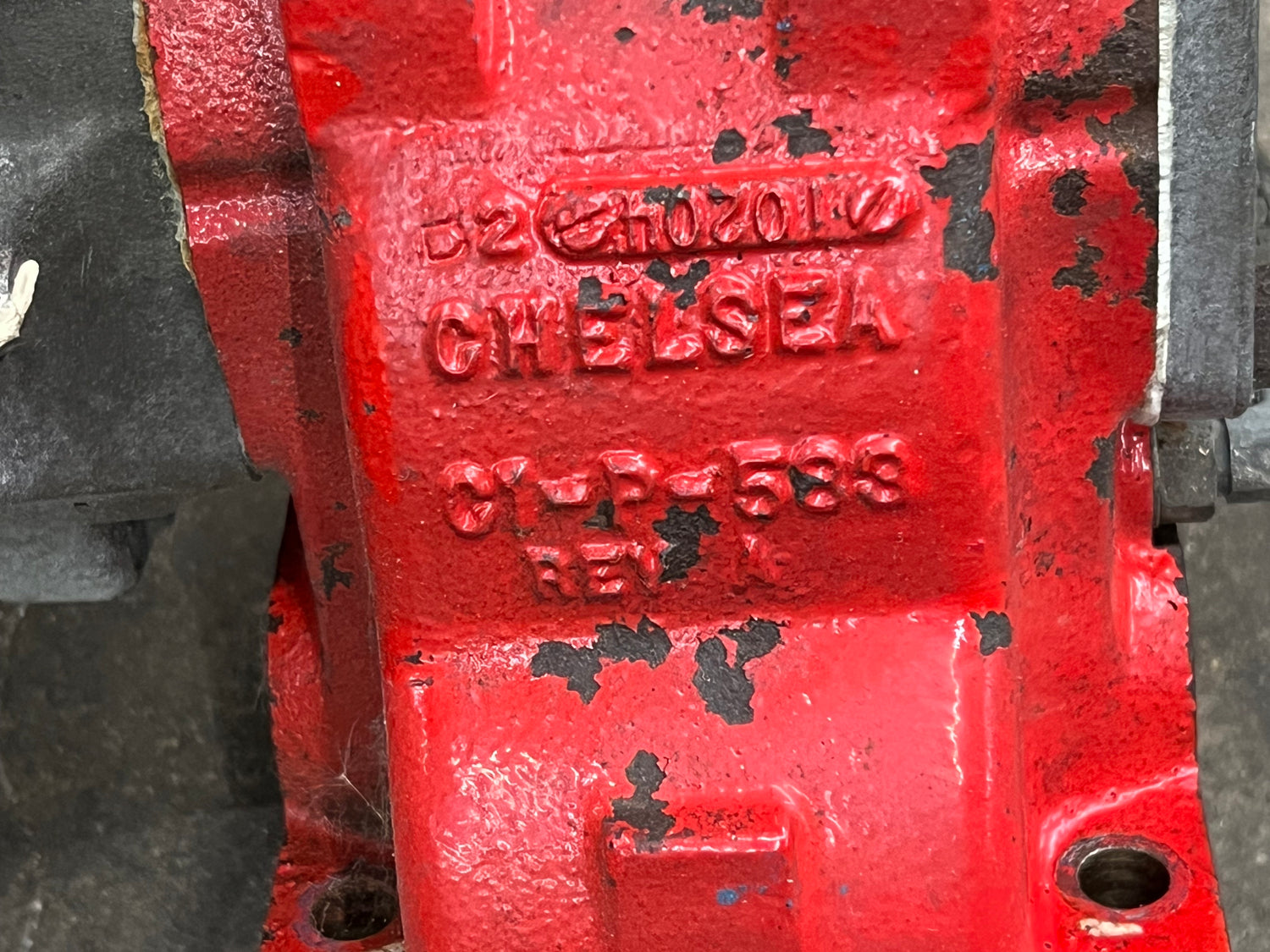

Chelsea 267XGFJP-M5XK PTO (POWER TAKE OFF), 10 BOLT, Part # C1-P-583, C1 P 583, C1P583

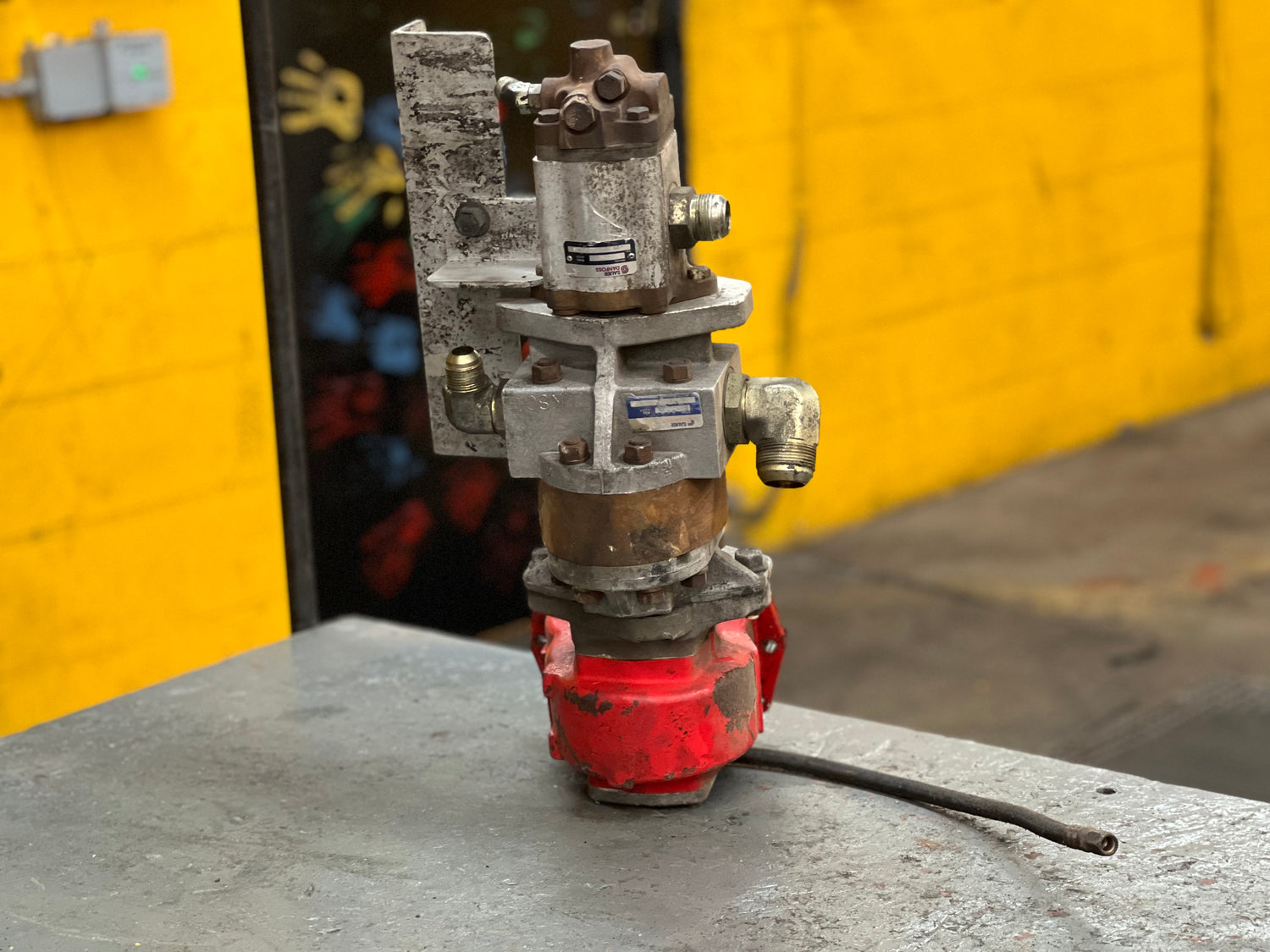

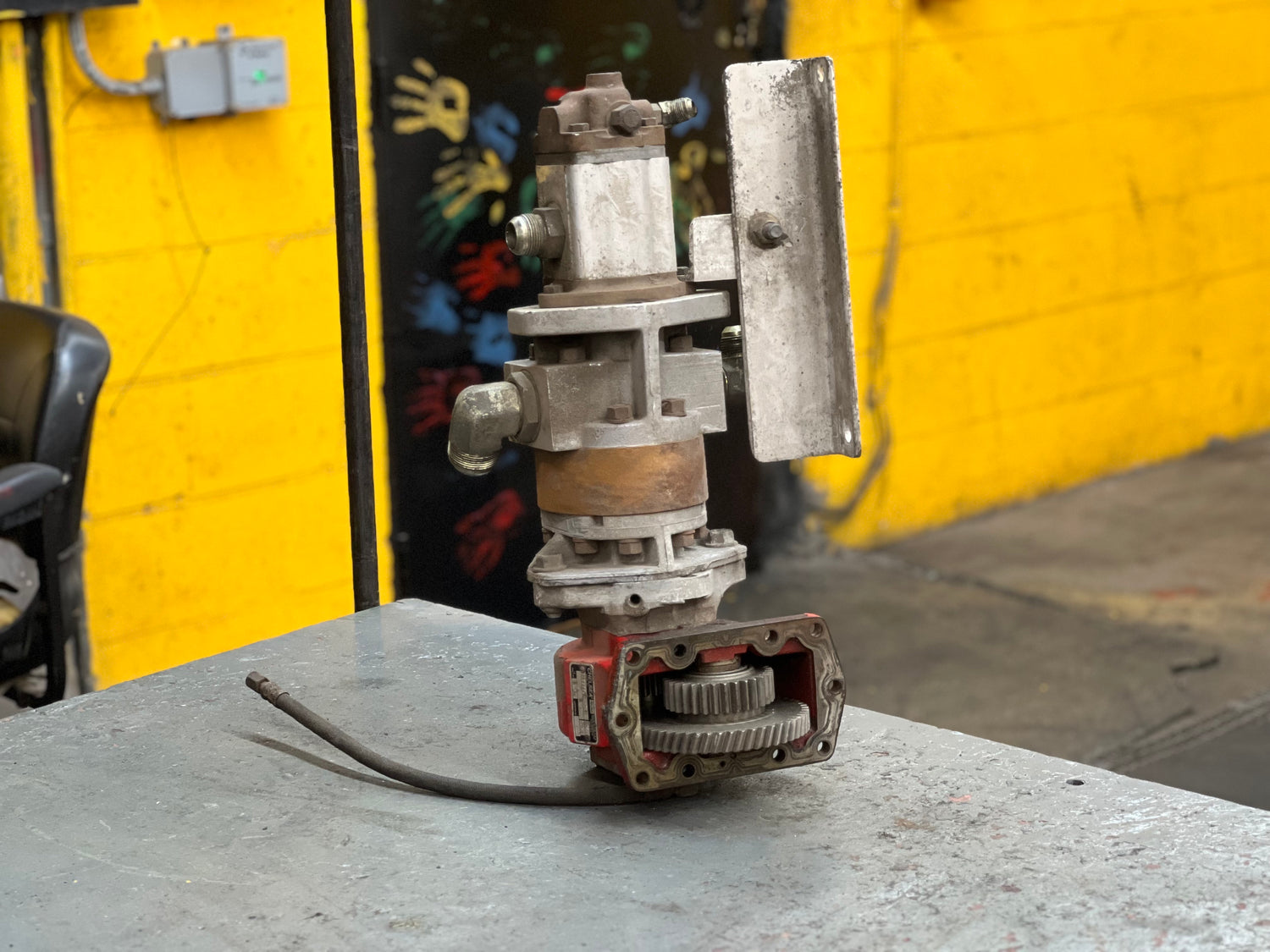

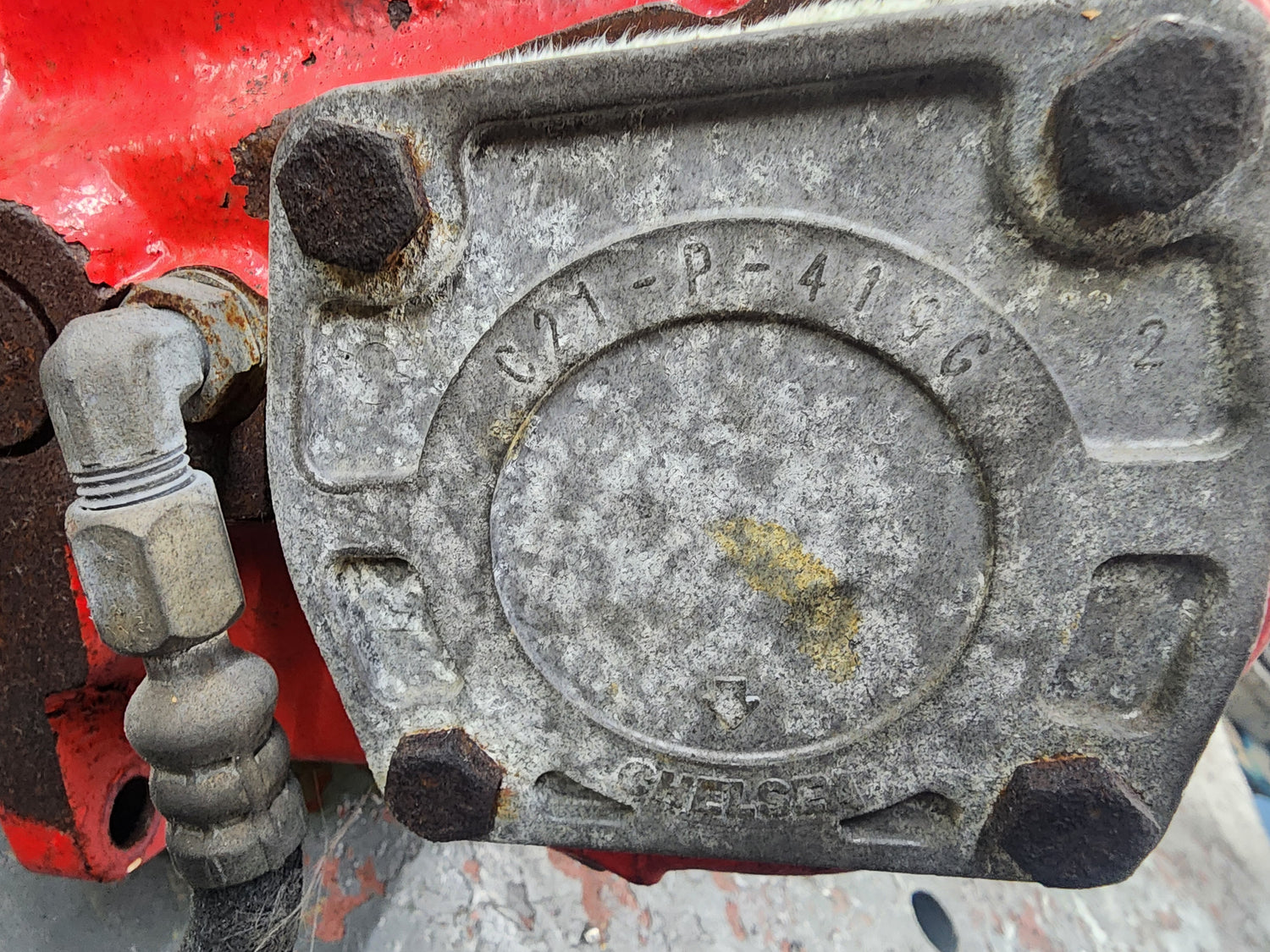

(GOOD USED) CHELSEA Parker PTO (Power Take Off) 267 Series For Sale, 10-BOLT PTO, Model # 267XGFJP-M5XK, PTO Part # C1-P-583, C1 P 583, C1P583, REV A, Bearing Cap Cover Part # C21-P-419 G, C21 P 419 G, C21P419G, Power Steering Pump Part # C25.7L36906182160, C25.7L, Date Code: 06OCT04, Hydraulic Pump Type # GPB-1109, GPB 1109, GPB1109, Date Code: 30\NOV\04, PULLED OFF EATON FULLER FRF15210B, Stock # 8285

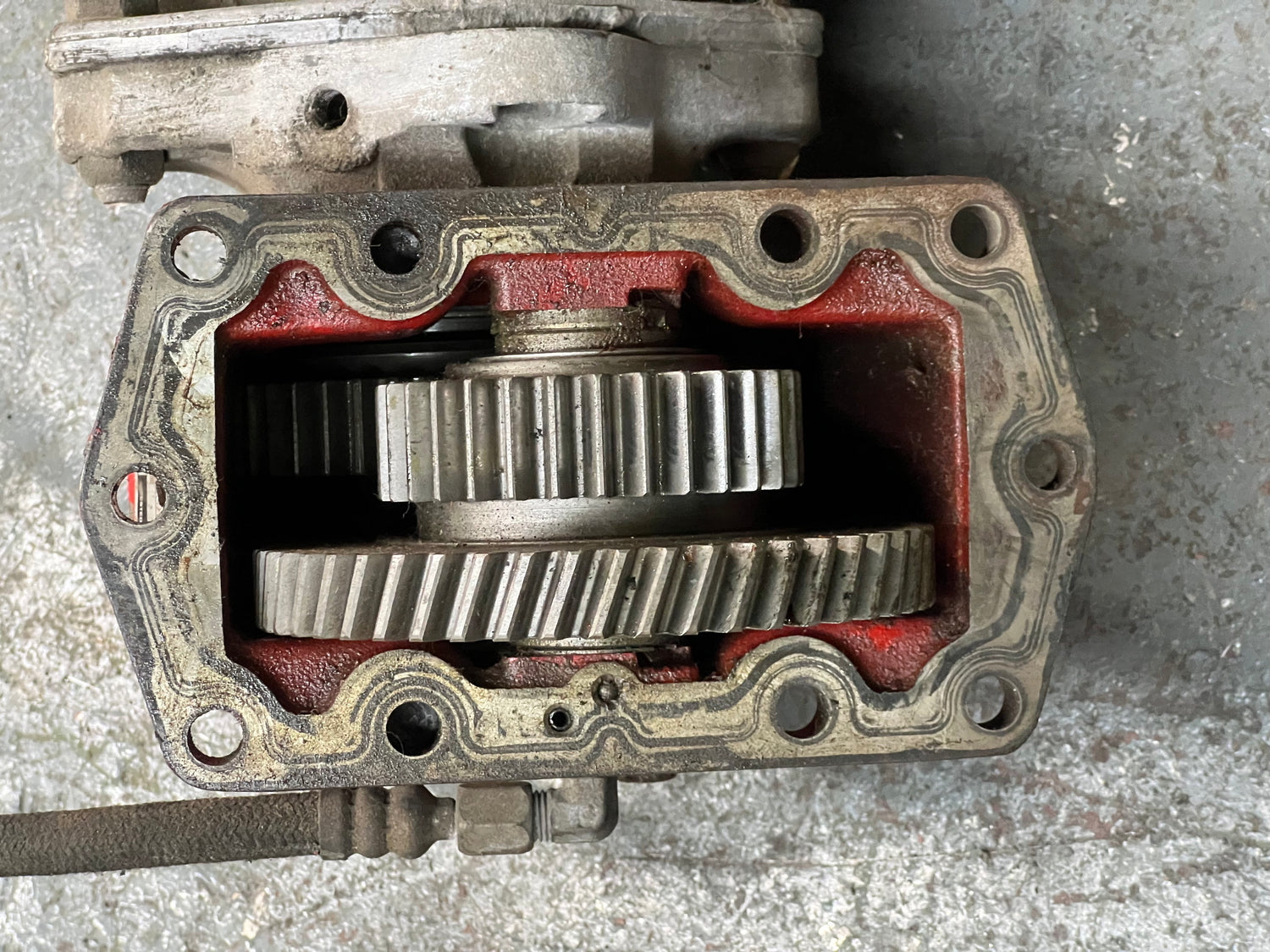

One Speed - Two Gear - Constant Mesh

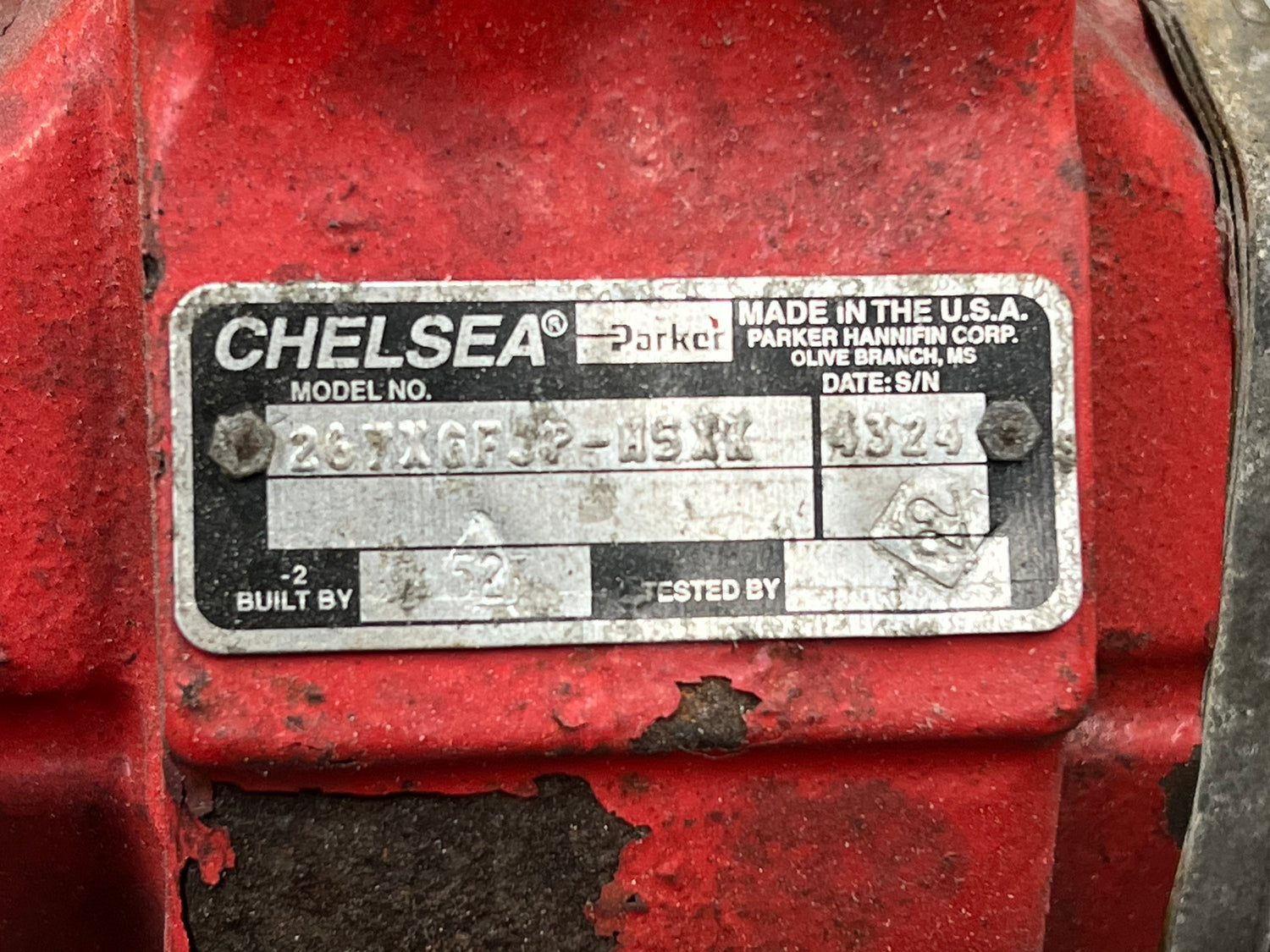

Model: 267XGFJP-M5XK
10-BOLT PTO
267 - Basic Model
Mounting Option: Standard Mounting
Gear Ratio: G
Input Gear Designator: FJ
Lubrication: P - Pressure Lubrication
Shift Option: M - Constant Engagement No Shifter
Assembly Arrangement: 5
Output Option: XK - S.A.E “B” 2 or 4 Bolt 7/8” 13T (TOOTH SPLINED (B))
Technical Specifications
Output Type: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
Intermittent Torque: 301 to 400 lb-ft, 401 to 500 Nm, 335 lb-ft (Check Application Pages for Actual Torque Ratings), 454 Nm (Check Application Pages for Actual Torque Ratings)
Transmission Manufacturer: Allison
Mounting Type: 10-Bolt
Lubricant: P = Pressure Lube, W = Wet Spline
Output Shaft Type: 1-1/4" Tapered Output Shaft W/ Keyway, Round Shaft (1-1/4" - 5/16" Key), SAE B (7/8" - 13T) Pump Spline, SAE C (1-1/4" - 14T) Pump Spline, SAE A (5/8" - 9T) Pump Spline, DIN 5462 Pump Spline, 3/4" - 11T Pump Spline, SAE BB (1" - 15T) Pump Spline
Output Power: 56+ HP, 41 to 50 kW
Continuous Operation: Yes with 30% de-rating
Shift Type: Constant Mesh
Shaft Power: 32 HP (500 RPM), 64 HP (1000 RPM), 24 kW (500 RPM), 48 kW (1000 RPM)
Weight: 35 lb, 16 kg
PUMP SUFFIX: XK (WET SPLINE)
Kit Number: 328591-157X
Assembly: 3, 4, 5 & 6
Flange Type: SAE B 2
Shaft Type (SAE) 7/8” - 13 Tooth Slipped (B)
NOTE: Use 329097-1X to convert PTOs with AK, XP, XQ, XN, or XK output to the self-lube pump option.

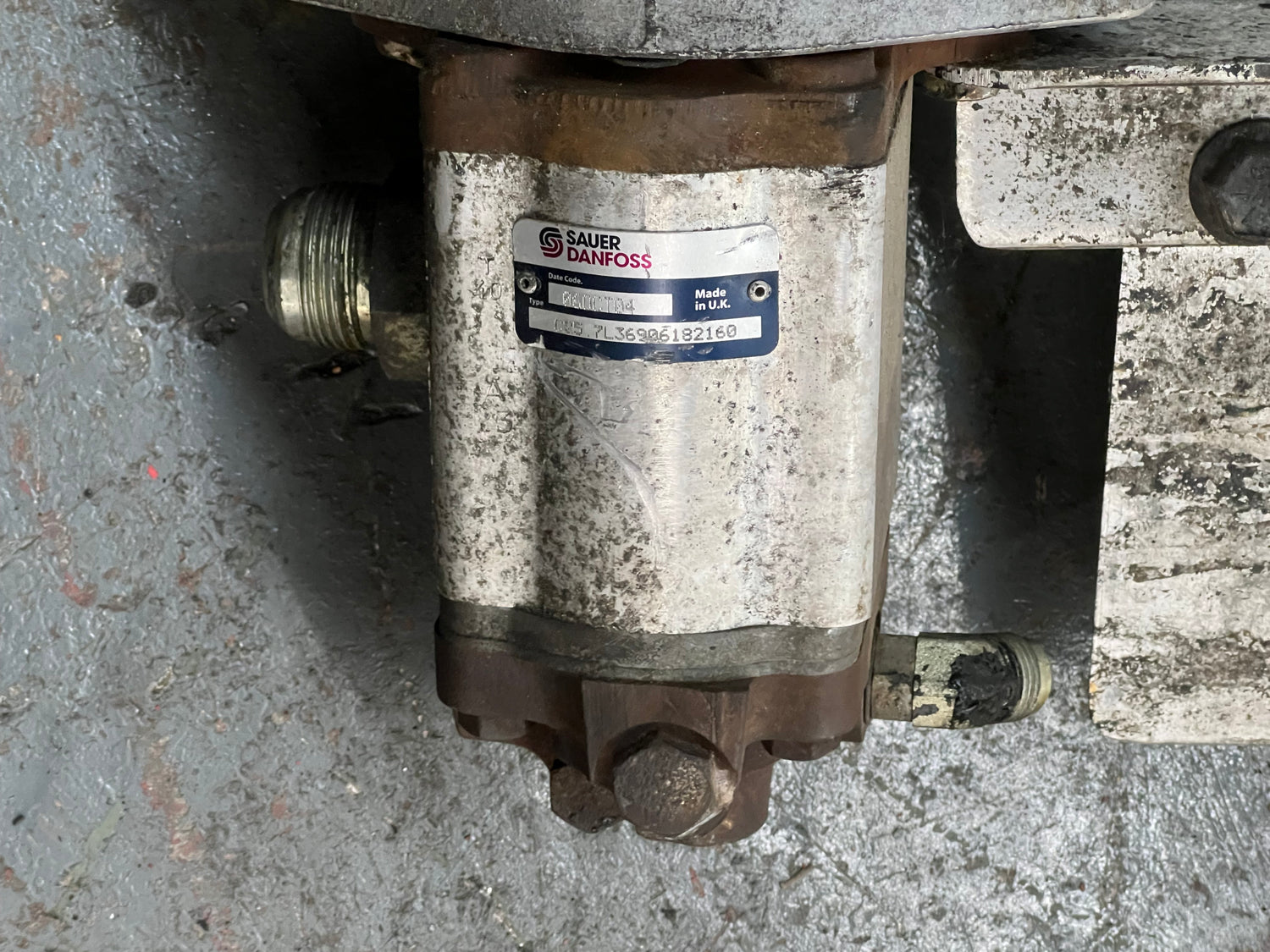

POWER STEERING PUMP

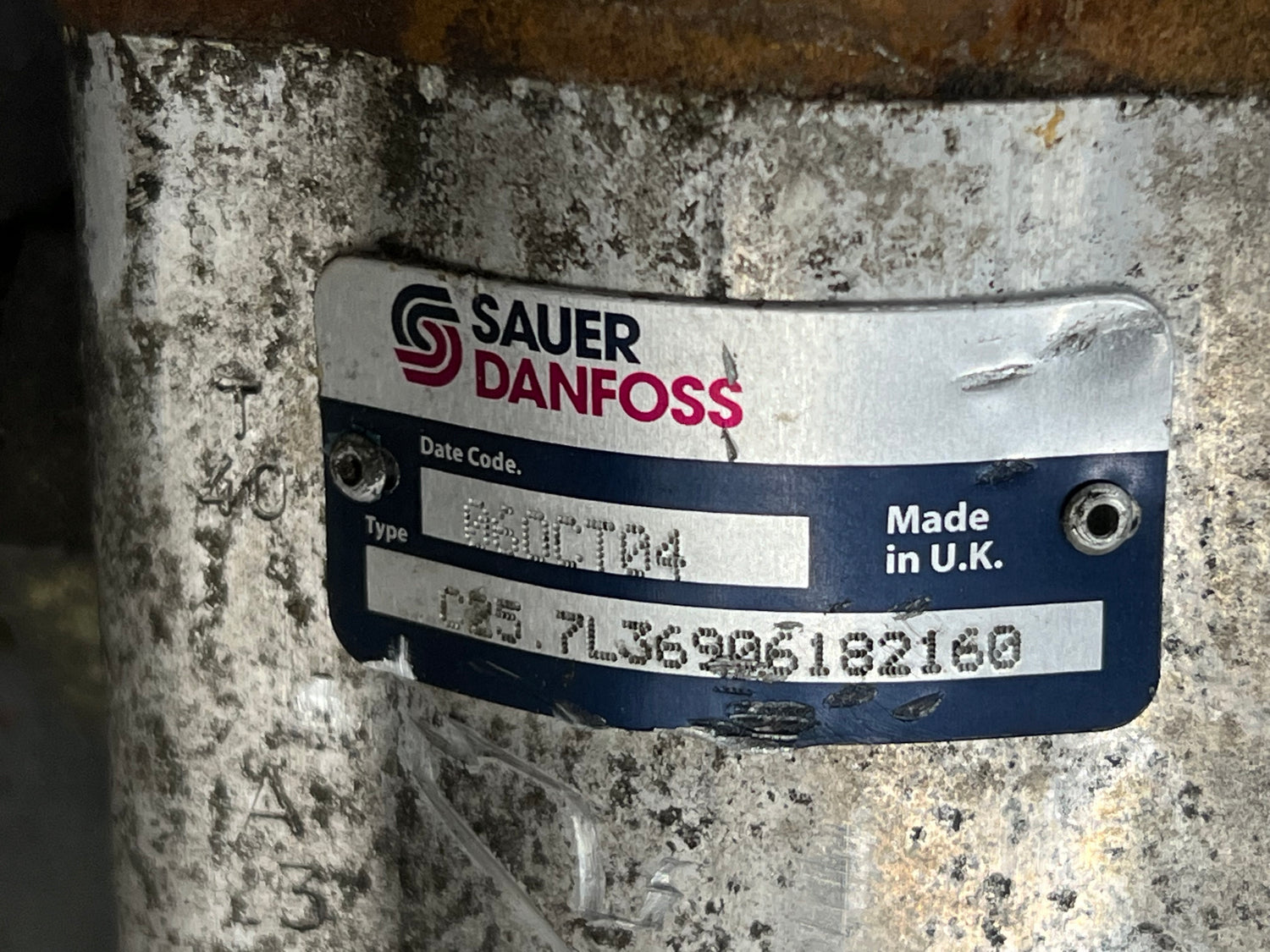

TYPE: C25.7L36906182160
DATE CODE: 06OCT04

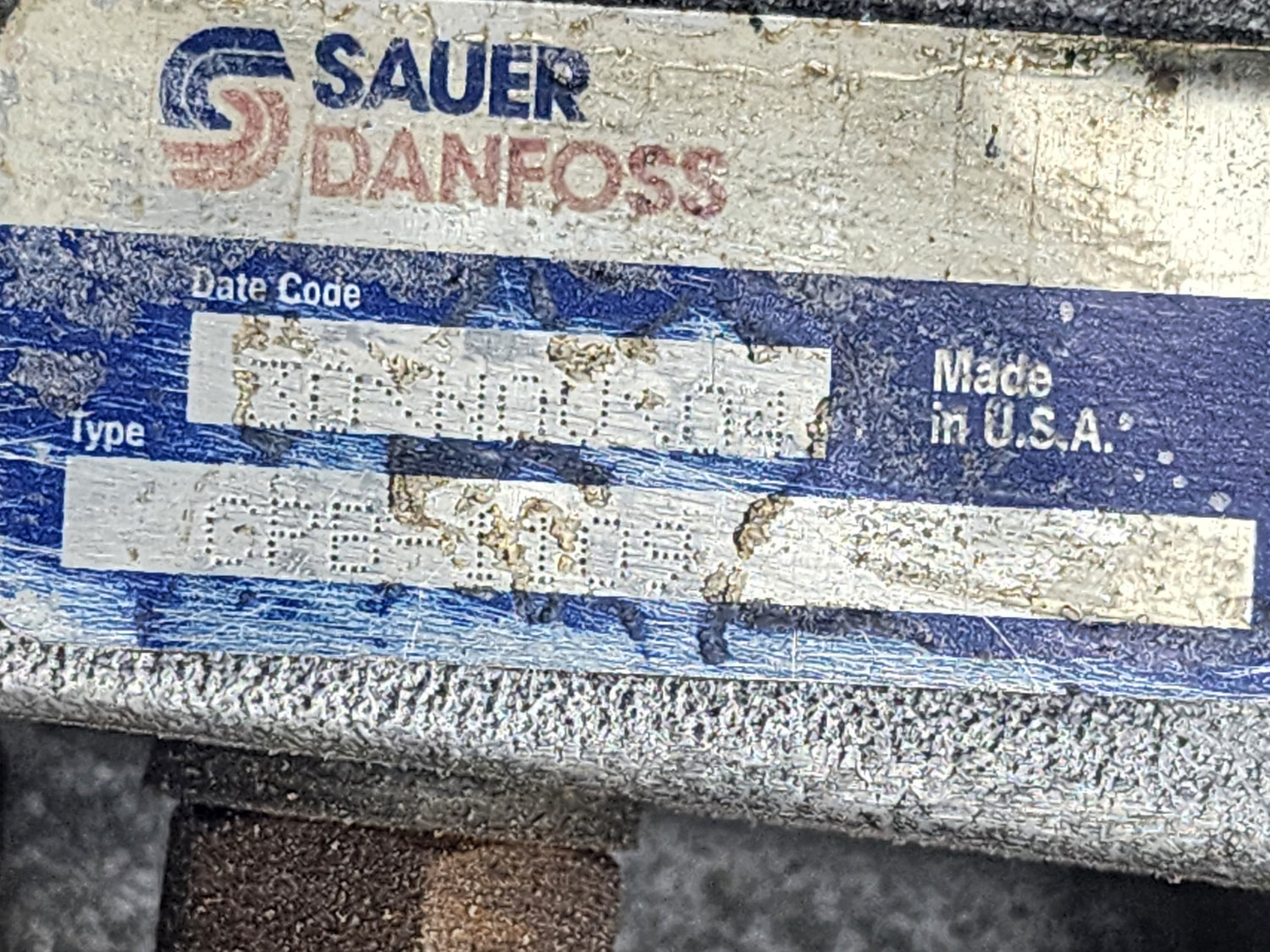

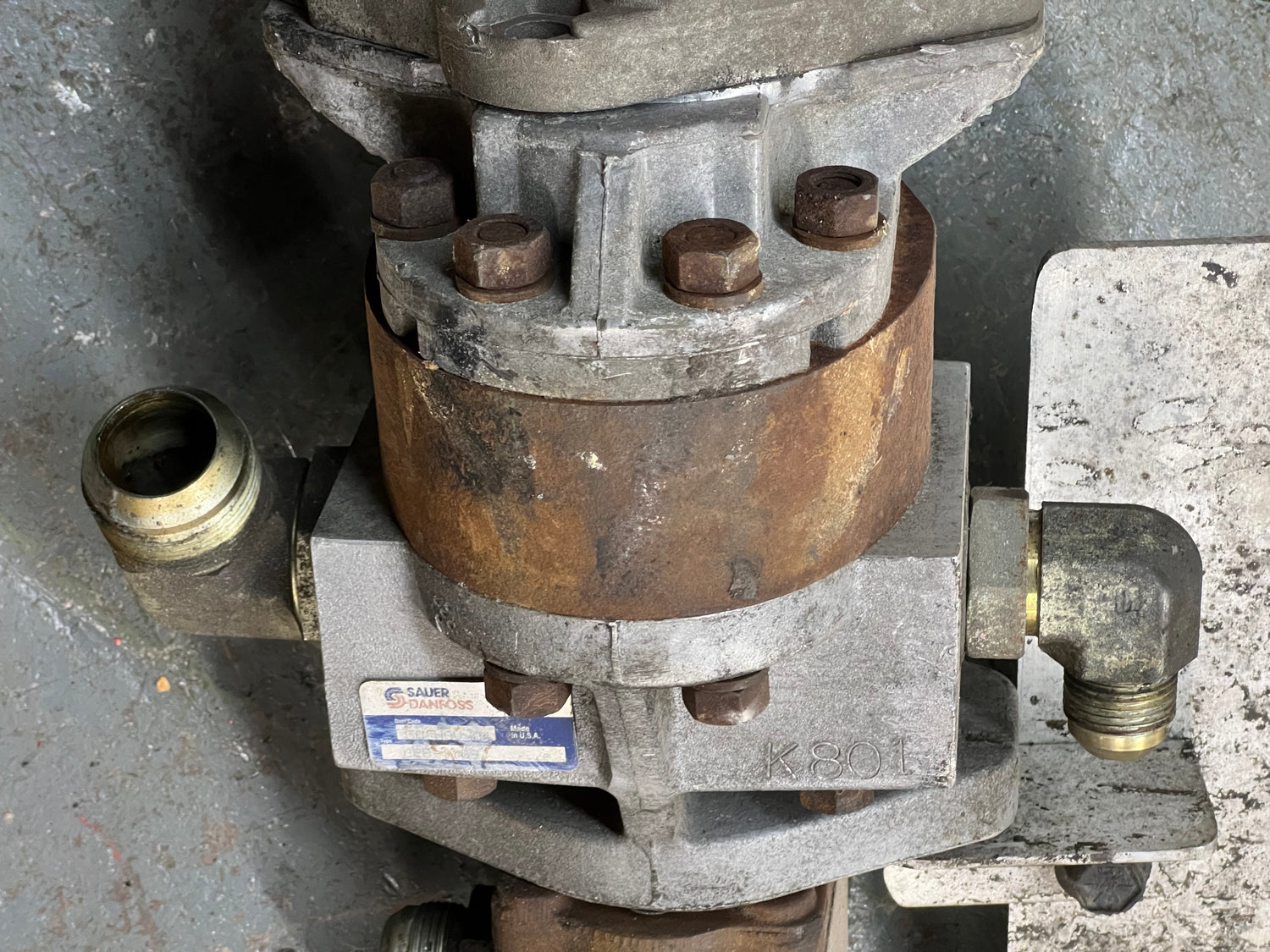

HYDRAULIC PUMP:
GPB-1109
DATE CODE: 30\NOV\04
All our PARTS are TESTED and Ship PRIORITY MAIL! OVERNIGHT SHIPPING options are available! Contact us for more information! CALL (305)688-1101
